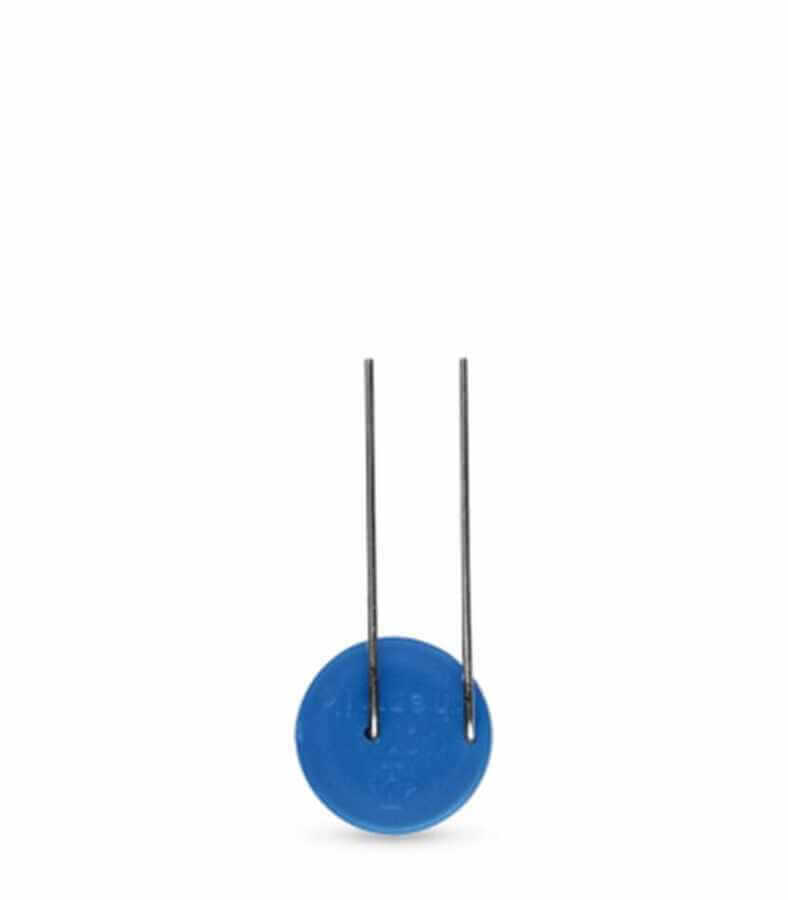

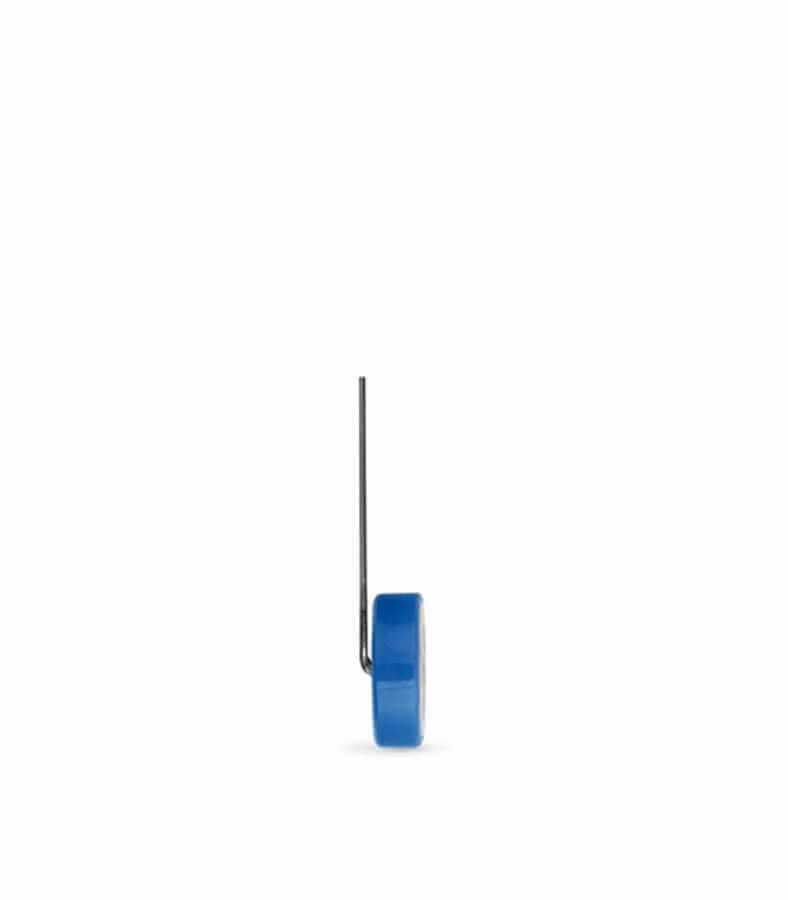

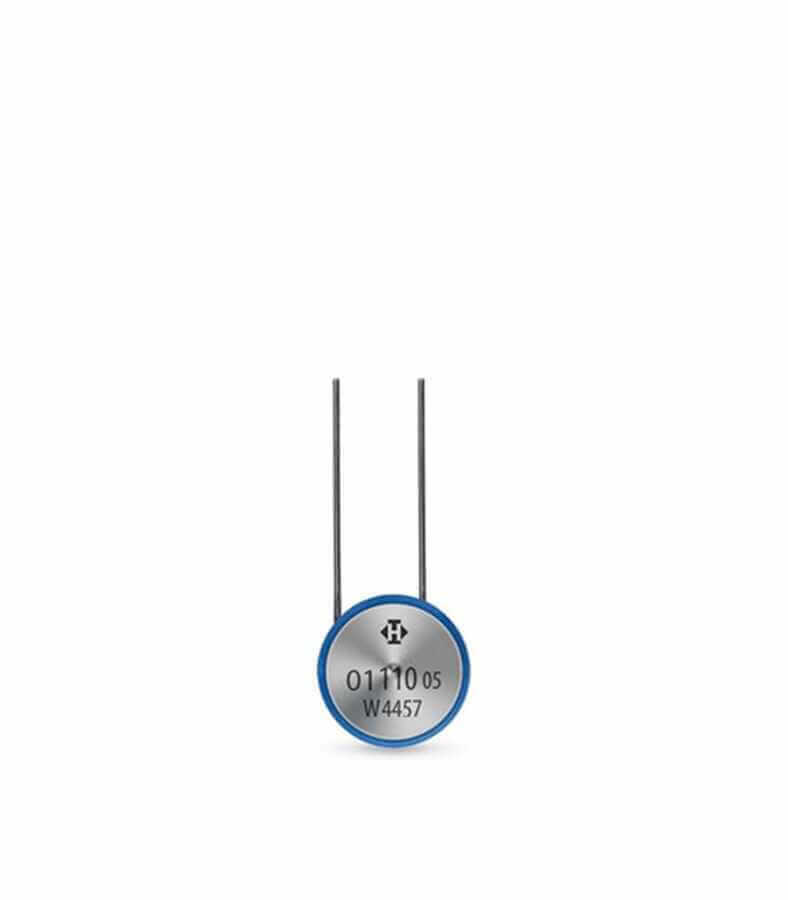

Bi - Metal Termik
Ürün Teknik Bilgi Dokümanını İndirmek için Buraya Tıklayın...
Features
| Specially flat design | to fit closely built-up circuits |
| Quick response sensitivity | Featured by small protector mass and the metal-housing |
| Excellent long term performance | due to instantaneous switching, fine silver contacts, constant contact resistance and to electrically as well as mechanically unstressed bimetallic disc, reproducible switching temperature values |
| Instantaneous switching | with always constant contact pressure up to the nominal switching point, resulting in low contact stress |
| Very short bounce times | < 1 ms |
| Temperature resistance by | use of high temperature resistant materials and components |
Technical Data
| Nominal switching temperature (NST) in 5 °C increments | 60 °C - 200 °C |
|---|---|
| Tolerance (standard) | ±2,5 K / ±5 K |
| Reverse Switch Temperature (defined RST is possible at the customer‘s request) | UL / ≥ 35° C (≤ 80° C NST) / -35 K ± 15 K (≥ 85°C ≤ 180° C NST) / -65 K ± 15 K (≥ 185° C ≤ 200° C NST) / VDE ≥ 35 °C |
| Installation height | from 3,4 mm |
| Diameter | 10,0 mm |
| Length of the connection pins | 14,0 mm / 20,0 mm |
| Resistance to impregnation * | suitable |
| Suitable for installation in protection class | I |
| Pressure resistance to the switch housing* | 450 N |
| Standard connection Connecting wire with | d = 0,5 mm |
| Available approvals (please state) | IEC; ENEC; VDE; UL; CSA; CQC |
| Operational voltage range AC/DC | up until 500 V AC / 14 V DC |
| Rated voltage AC | 250 V (VDE) 277 V (UL) |
| Rated current AC cos ϕ = 1.0/cycles | 2,5 A / 10.000 |
| Rated current AC cos ϕ = 0.6/cycles | 1,6 A / 10.000 |
| Max. switching current AC cos ϕ = 1.0/cycles | 6,3 A / 3.000 | 7,5 A / 300 |
| Rated current AC cos ϕ = 0.4/cycles | 1,8 A / 10.000 |
| Max. switching current AC cos ϕ = 0.4/cycles | 7,2 A / 1.000 |
| Rated voltage DC | 12 V |
| Max. switching current DC/cycles | 40,0 A / 5.000 |
| Total bounce time | < 1 ms |
| Contact resistance (according to MIL-STD. R5757) | ≤ 50 mΩ |
| Vibration resistance at 10 ... 60 Hz | 100 m/s² |
