Features

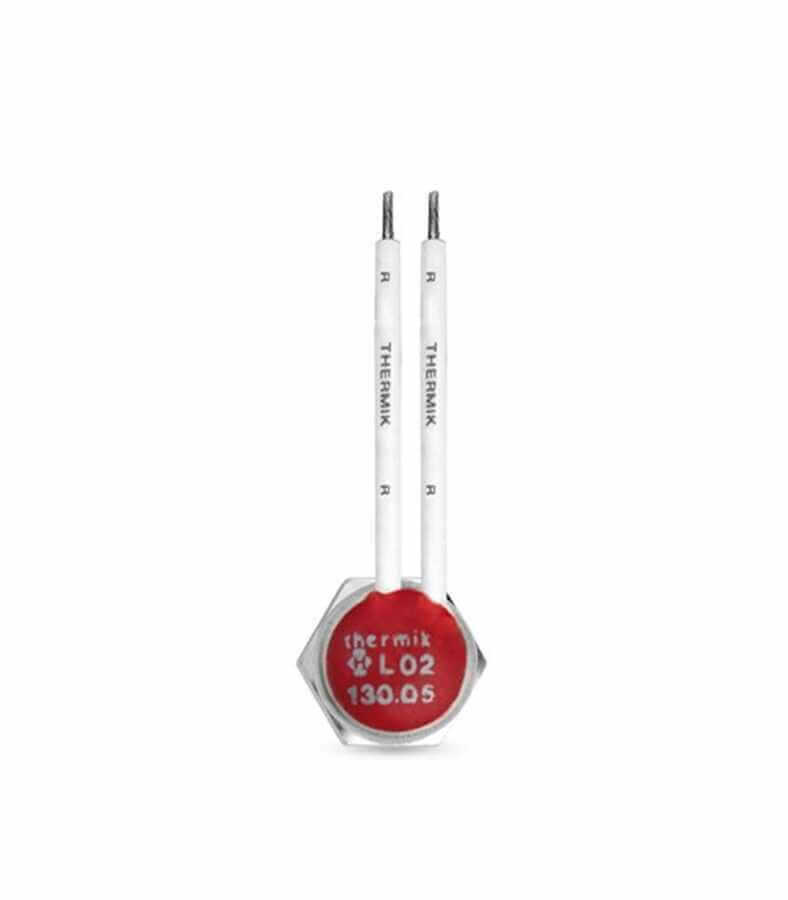

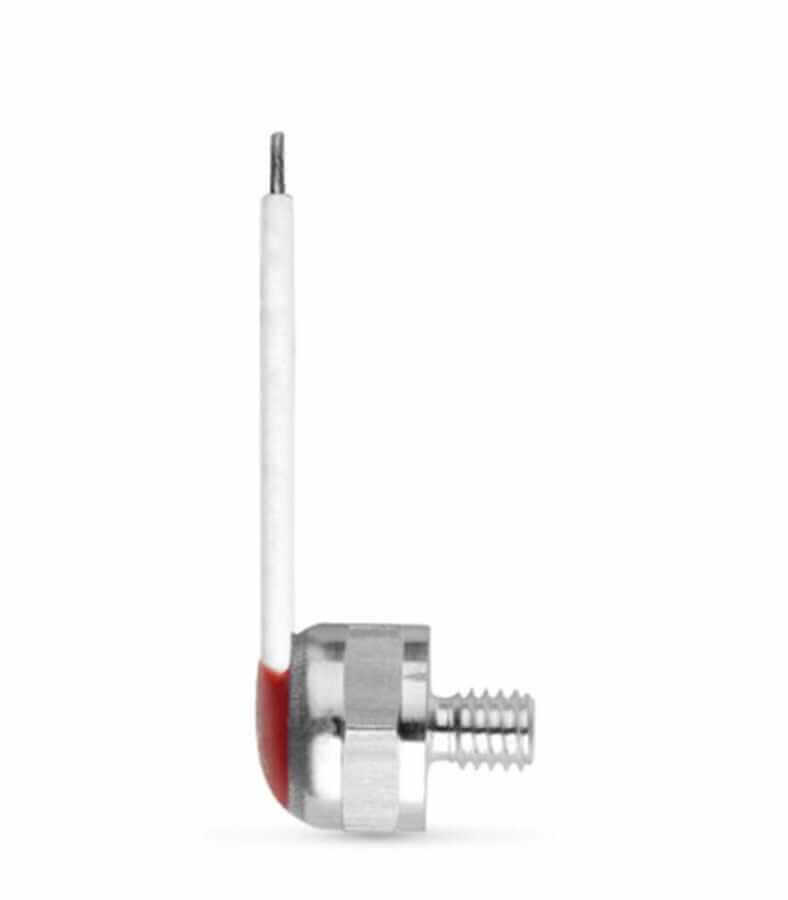

Specially flat design to fit closely built-up circuits Quick response sensitivity Featured by small protector mass and the metal-housing Excellent long term performance due to instantaneous switching, fine silver contacts, constant contact resistance and to electrically as well as mechanically unstressed bimetallic disc, reproducible switching temperature values Instantaneous switching always with the same contact pressure up to reset point; resulting in low contact stress Very short bounce times < 1 ms Temperature resistance by use of high temperature resistant materials and components Technical Data
Nominal switching temperature (NST) in 5 °C increments 60 °C - 200 °C Tolerans (standart) ±5 K Reverse Switch Temperature
(defined RST is possible at the customer‘s request)≥ 35° C (≤ 80° C NST)
-35 K ± 15 K (≥ 85°C ≤ 180° C NST)
-65 K ± 15 K (≥ 185° C ≤ 200° C NST)
≥ 35 °CHousing height from 7,0 mm Diameter 9.4 mm Thread/Length M4 x 5,0 mm Width across flats/Max. torque 10,0 mm / 2 Nm Resistance to impregnation* suitable Suitable for installation in protection class I + II Pressure resistance to the switch housing* 450 N Standard connection Lead wire 0,25 mm² / AWG22 Available approvals (please state) IEC; ENEC; VDE; UL; CSA; CQC Operating voltage range AC up until 500 V AC Rated voltage AC 250 V (VDE) 277 V (UL) Rated current AC cos ϕ = 1.0/cycles 2,5 A / 10.000 Rated current AC cos ϕ = 0.6/cycles 1,6 A / 10.000 High voltage resistance 2,0 kV Total bounce time < 1 ms Contact resistance (according to MIL-STD. R5757) ≤ 50 mΩ Vibration resistance at 10 ... 60 Hz 100 m/s² Ağırlık(Kg):0.5Ürün Etiketleri
