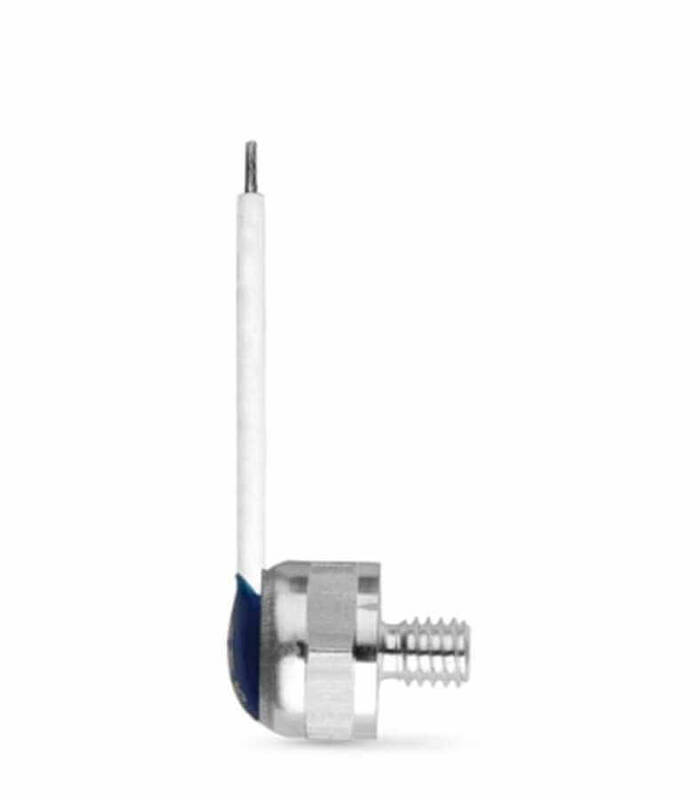

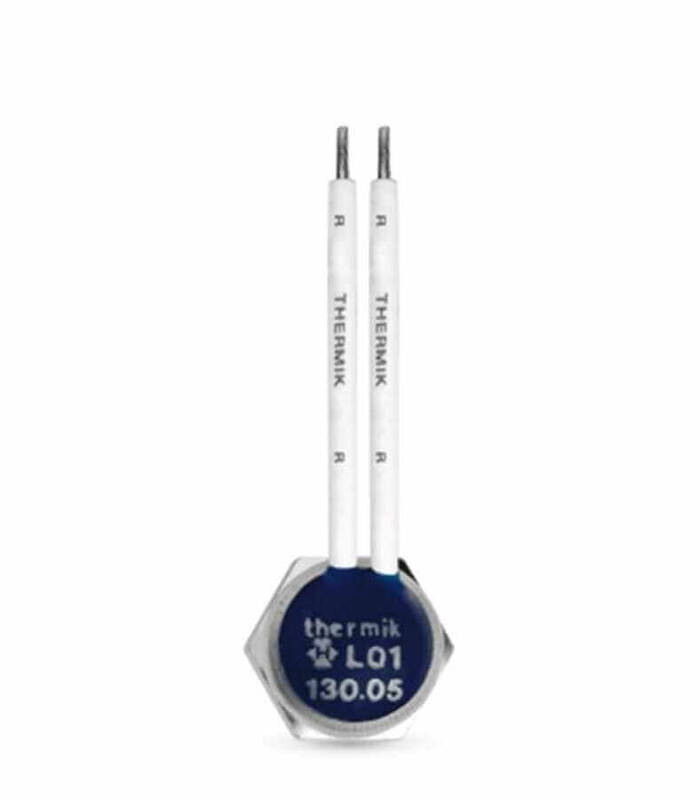

Thermik L01 Normalde kapalı Vidalı Tip Termik Koruyucu

Name: Thermik L01 Normalde kapalı Vidalı Tip Termik Koruyucu
Brand: Thermik
SKU: T60
Price: 129.12 TRY
Availability: InStock

0 Yorumlar

Yorum Yap

FİYAT :

107,60 TL + KDV

KDV DAHİL FİYATI : 129,12 TL

{"vat":20,"m_o_p":-1,"variant_ids":{"920_685":"2391","545_685":"203","543_685":"204","921_686":"2392","542_686":"2393","541_685":"205","540_685":"2394","539_685":"1567","538_685":"1264","531_685":"1265"},"variant_prices":{"920_685":107.603399999999993497112882323563098907470703125,"545_685":107.603399999999993497112882323563098907470703125,"543_685":107.603399999999993497112882323563098907470703125,"921_686":107.603399999999993497112882323563098907470703125,"542_686":107.603399999999993497112882323563098907470703125,"541_685":107.603399999999993497112882323563098907470703125,"540_685":107.603399999999993497112882323563098907470703125,"539_685":107.603399999999993497112882323563098907470703125,"538_685":107.603399999999993497112882323563098907470703125,"531_685":286.9424000000000205545802600681781768798828125},"variant_price_raws":{"920_685":3,"545_685":3,"543_685":3,"921_686":3,"542_686":3,"541_685":3,"540_685":3,"539_685":3,"538_685":3,"531_685":8},"buying_prices":{"920_685":0,"545_685":0,"543_685":0,"921_686":0,"542_686":0,"541_685":0,"540_685":0,"539_685":0,"538_685":0,"531_685":0},"not_discounted_prices":{"920_685":107.603399999999993497112882323563098907470703125,"545_685":107.603399999999993497112882323563098907470703125,"543_685":107.603399999999993497112882323563098907470703125,"921_686":107.603399999999993497112882323563098907470703125,"542_686":107.603399999999993497112882323563098907470703125,"541_685":107.603399999999993497112882323563098907470703125,"540_685":107.603399999999993497112882323563098907470703125,"539_685":107.603399999999993497112882323563098907470703125,"538_685":107.603399999999993497112882323563098907470703125,"531_685":286.9424000000000205545802600681781768798828125},"variant_supplier_codes":{"920_685":"L01060","545_685":"L01070","543_685":"L01080","921_686":"L01085","542_686":"L01090","541_685":"L01100","540_685":"L01110","539_685":"L01120","538_685":"L01130","531_685":"L01180"},"active_ids":{"one_920":["685"],"two_685":["920","541","540","539","538"],"one_545":[],"one_543":[],"one_921":["686"],"two_686":["921","542"],"one_542":["686"],"one_541":["685"],"one_540":["685"],"one_539":["685"],"one_538":["685"],"one_531":[]},"variant_informations":[],"variant_stocks":{"920_685":"184","545_685":"0","543_685":"0","921_686":"200","542_686":"200","541_685":"200","540_685":"200","539_685":"10","538_685":"1975","531_685":"0"}}

Kablo Uzunluğu

Adet

Sepete Ekle

Hemen Al

Tavsiye Et Fiyat Alarmı

Ürün Özellikleri
Ödeme Seçenekleri
Teslimat & İade Koşulları
Yorumlar (0)
Hızlı Mesaj
Tavsiye Et

Ürün teknik bilgilerini indirmek için lütfen tıklayınız...

Technical Data Type L01

Nominal anahtarlama sıcaklığı (NST) 5 °C'lik artışlarla	60 °C - 200 °C
Tolerans (standart)	±5 K
Tekrar Açma Sıcaklığı (müşterinin talebi üzerine tanımlanmış RST mümkündür)	≥ 35° C (≤ 80° C NST) -35 K ± 15 K (≥ 85°C ≤ 180° C NST) -65 K ± 15 K (≥ 185° C ≤ 200° C NST) ≥ 35 °C
Gövde yüksekliği	7,0 mm
Çap	10,0 mm
Diş/Uzunluk	M4 x 5,0 mm
Düzlükler arası genişlik/Maks. tork	10,0 mm / 2 Nm
Emprenyeye karşı direnç*	suitable
Koruma sınıfına montaj için uygunluk	I + II
Anahtar muhafazasına basınç direnci *	450 N
Standart bağlantı	Lead wire 0,25 mm² / AWG22
Mevcut onaylar	IEC; ENEC; VDE; UL; CSA; CQC
Çalışma gerilimi aralığı AC/DC	up until 500 V AC / 14 V DC
Anma gerilimi AC	250 V (VDE) 277 V (UL)
Anma gerilimi AC cos ϕ = 1.0/cycles	2,5 A / 10.000
Anma gerilimi AC cos ϕ = 0.6/cycles	1,6 A / 10.000
Maks. anahtarlama akımı AC cos ϕ = 1.0/cycles	6,3 A / 3.000 - 7,5 A / 300
Nominal akım AC cos ϕ = 0.4/cycles	1,8 A / 10.000
Maks. anahtarlama akımı AC cos ϕ = 0.4/cycles	7,2 A / 1.000
Anma gerilimi DC	12 V
Maks. anahtarlama akımı DC/cycles	40,0 A / 5.000
Yüksek gerilim direnci	2,0 kV
Toplam sekme süresi	< 1 ms
Contact resistance (according to MIL-STD. R5757)	≤ 50 mΩ
Vibration resistance at 10 ... 60 Hz	100 m/s
Vibration resistance at 10 ... 60 Hz	100 m/s²
