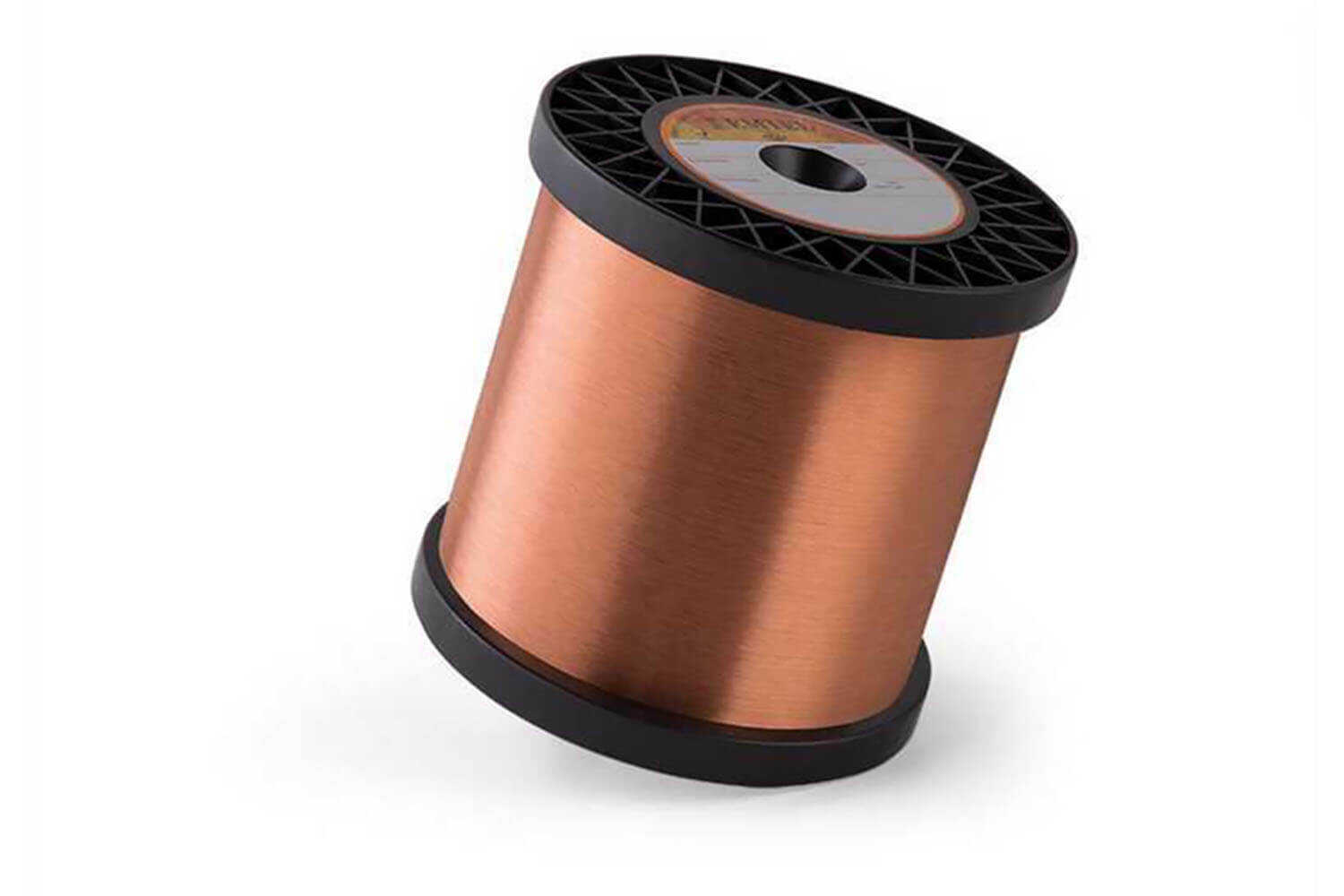

EmSold 180 (HB Sınıfı) 0.50 - 1.00 mm Emaye Bobin Teli

Name: EmSold 180 (HB Sınıfı) 0.50 - 1.00 mm Emaye Bobin Teli
Brand: Emtel
SKU: T213
Price: 615.81 TRY
Availability: InStock

0 Yorumlar

Yorum Yap

FİYAT :

513,17 TL + KDV

KDV DAHİL FİYATI : 615,81 TL

Kısa Ürün Açıklaması

{"vat":20,"m_o_p":-1,"variant_ids":{"0_322":"1977","0_321":"1976","0_320":"1960","0_319":"1961","0_318":"1962","0_317":"1963","0_316":"1964","0_314":"1965","0_313":"1966","0_312":"1967","0_311":"1968","0_310":"1970","0_309":"1969"},"variant_prices":{"0_322":513.17174999999997453414835035800933837890625,"0_321":513.17174999999997453414835035800933837890625,"0_320":513.17174999999997453414835035800933837890625,"0_319":513.17174999999997453414835035800933837890625,"0_318":513.17174999999997453414835035800933837890625,"0_317":513.17174999999997453414835035800933837890625,"0_316":513.17174999999997453414835035800933837890625,"0_314":513.17174999999997453414835035800933837890625,"0_313":513.17174999999997453414835035800933837890625,"0_312":513.17174999999997453414835035800933837890625,"0_311":513.17174999999997453414835035800933837890625,"0_310":513.17174999999997453414835035800933837890625,"0_309":513.17174999999997453414835035800933837890625},"variant_price_raws":{"0_322":14.4199999999999999289457264239899814128875732421875,"0_321":14.4199999999999999289457264239899814128875732421875,"0_320":14.4199999999999999289457264239899814128875732421875,"0_319":14.4199999999999999289457264239899814128875732421875,"0_318":14.4199999999999999289457264239899814128875732421875,"0_317":14.4199999999999999289457264239899814128875732421875,"0_316":14.4199999999999999289457264239899814128875732421875,"0_314":14.4199999999999999289457264239899814128875732421875,"0_313":14.4199999999999999289457264239899814128875732421875,"0_312":14.4199999999999999289457264239899814128875732421875,"0_311":14.4199999999999999289457264239899814128875732421875,"0_310":14.4199999999999999289457264239899814128875732421875,"0_309":14.4199999999999999289457264239899814128875732421875},"buying_prices":{"0_322":284.69999999999998863131622783839702606201171875,"0_321":284.69999999999998863131622783839702606201171875,"0_320":284.69999999999998863131622783839702606201171875,"0_319":284.69999999999998863131622783839702606201171875,"0_318":284.69999999999998863131622783839702606201171875,"0_317":284.69999999999998863131622783839702606201171875,"0_316":284.69999999999998863131622783839702606201171875,"0_314":284.69999999999998863131622783839702606201171875,"0_313":284.69999999999998863131622783839702606201171875,"0_312":284.69999999999998863131622783839702606201171875,"0_311":284.69999999999998863131622783839702606201171875,"0_310":284.69999999999998863131622783839702606201171875,"0_309":284.69999999999998863131622783839702606201171875},"not_discounted_prices":{"0_322":513.17174999999997453414835035800933837890625,"0_321":513.17174999999997453414835035800933837890625,"0_320":513.17174999999997453414835035800933837890625,"0_319":513.17174999999997453414835035800933837890625,"0_318":513.17174999999997453414835035800933837890625,"0_317":513.17174999999997453414835035800933837890625,"0_316":513.17174999999997453414835035800933837890625,"0_314":513.17174999999997453414835035800933837890625,"0_313":513.17174999999997453414835035800933837890625,"0_312":513.17174999999997453414835035800933837890625,"0_311":513.17174999999997453414835035800933837890625,"0_310":513.17174999999997453414835035800933837890625,"0_309":513.17174999999997453414835035800933837890625},"variant_supplier_codes":{"0_322":"","0_321":"","0_320":"056HBO","0_319":"060HBO","0_318":"065HBO","0_317":"070HBO","0_316":"071HBO","0_314":"075HBO","0_313":"080HBO","0_312":"085HBO","0_311":"090HBO","0_310":"095HBO","0_309":"100HBO"},"active_ids":{"one_0":["322","321","320","319","318","317","316","314","313","312","311","310","309"],"two_322":["0"],"two_321":["0"],"two_320":["0"],"two_319":["0"],"two_318":["0"],"two_317":["0"],"two_316":["0"],"two_314":["0"],"two_313":["0"],"two_312":["0"],"two_311":["0"],"two_310":["0"],"two_309":["0"]},"variant_informations":[],"variant_stocks":{"0_322":"382.5","0_321":"500","0_320":"492.5","0_319":"422.16","0_318":"472.5","0_317":"428","0_316":"500","0_314":"435","0_313":"474","0_312":"487","0_311":"481","0_310":"481.5","0_309":"433.5"}}

İletken Çapı

Sepete Ekle

Hemen Al

Tavsiye Et Fiyat Alarmı

Ürün Özellikleri
Ödeme Seçenekleri
Teslimat & İade Koşulları
Yorumlar (0)
Hızlı Mesaj
Tavsiye Et

180°C’ ye kadar ısı direnci sağlayan EmSold 180, arzu edildiğinde kırmızı veya yeşil renklerde de üretimi mümkündür. 380°C sıcaklıkta 1-2 saniye içinde lehim alma özelliği taşır.

Uygulama Alanları:

Küçük motor ve trafolar
Selenoid bobinler
Röleler

TERMAL SINIF (°C)	Class HB, 180 °C

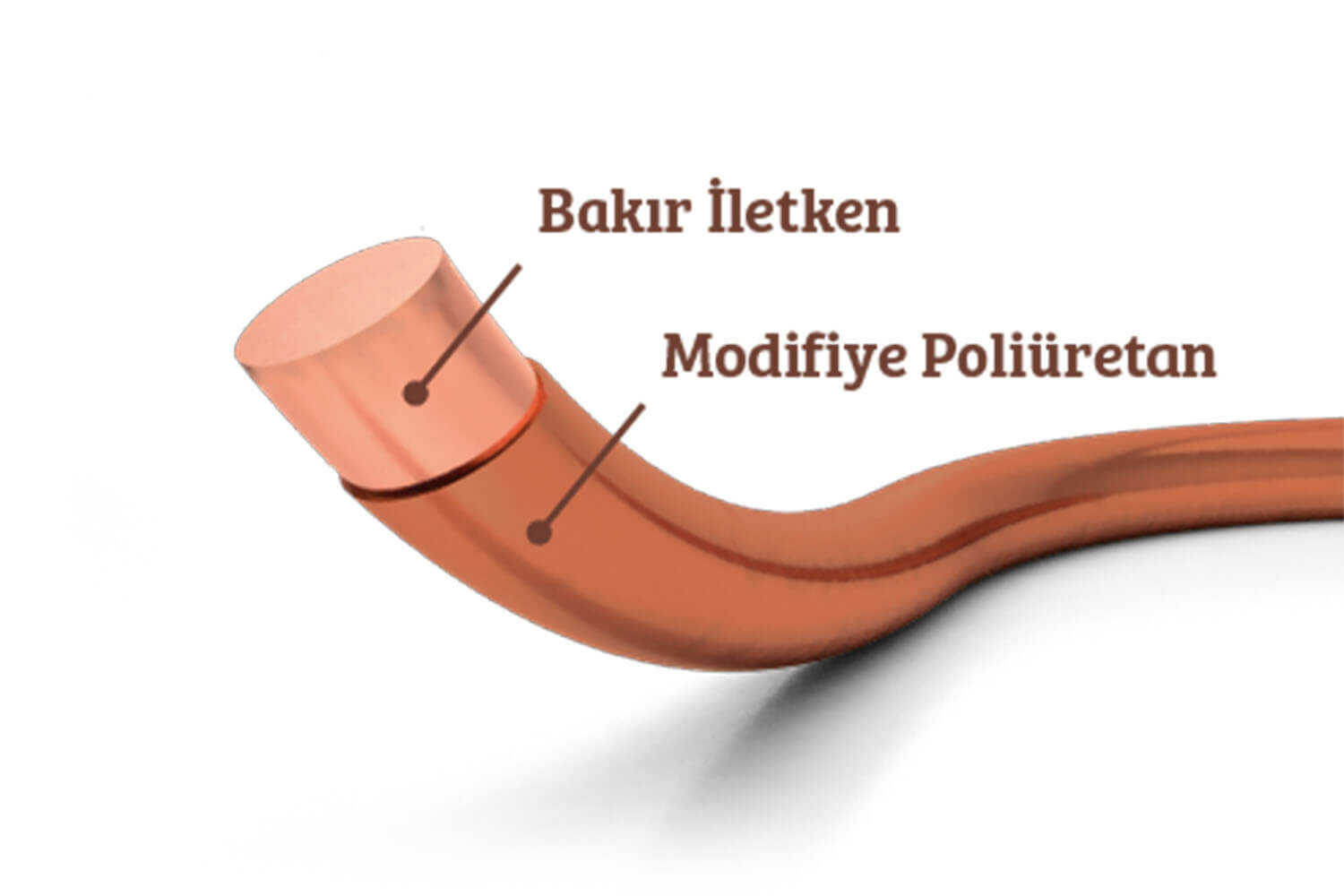

YALITIM \| ALT KATMAN	Modifiye Poliüretan
YALITIM \| ÜST KATMAN	Yok
YALITIM \| BAĞ KATMAN	Yok
ÜRETİM ARALIĞI (MM)	0.03 -1.10 mm
STANDARTLAR I.E.C	IEC 60317 - 51
UL DOSYA NO	-
ISI SINIFI (°C)	180 °C
ISIL ŞOK (°C)	≥ 200 °C
ISI İLE DELİNME SICAKLIĞI (°C)	≥ 230 °C
LEHİMLENME-SİCAKLİGİ (°C)	> 380 °C \| 1-2 sn
ISI İLE YAPIŞMA SICAKLIĞI (°C)	Uygulanmaz
GERİ YUMUŞAMA SICAKLIĞI (°C)	Uygulanmaz
NORMAL SOLVENTLERE DİRENÇ	3H - 4H
DALDIRMA VERNİĞİ DİRENCİ	İyi
SOĞUTUCU GAZ DİRENCİ	Kullanılmaz
TRAFO YAĞLARINA KARŞI DİRENÇ	Kullanılmaz
KULLANIM ALANI	Elektromekanik, Otomotiv
BELİRGİN ÖZELLİKLERİ	Arzu edildiğinde (Kırmızı) ve (Yeşil) renklerde üretilebilme imkanı, Düşük sıcaklıkta mükemmel lehimlenebilme
UYGULAMALAR	DC Mikro Motorlar, Düşük Gerilim Mikro Motorlar, İletişim Araçları, İletişim Ekipmanları, Mikro Trafolar, Ölçüm Araçları, Röle, Silecek Motoru, Solenoid Bobin
