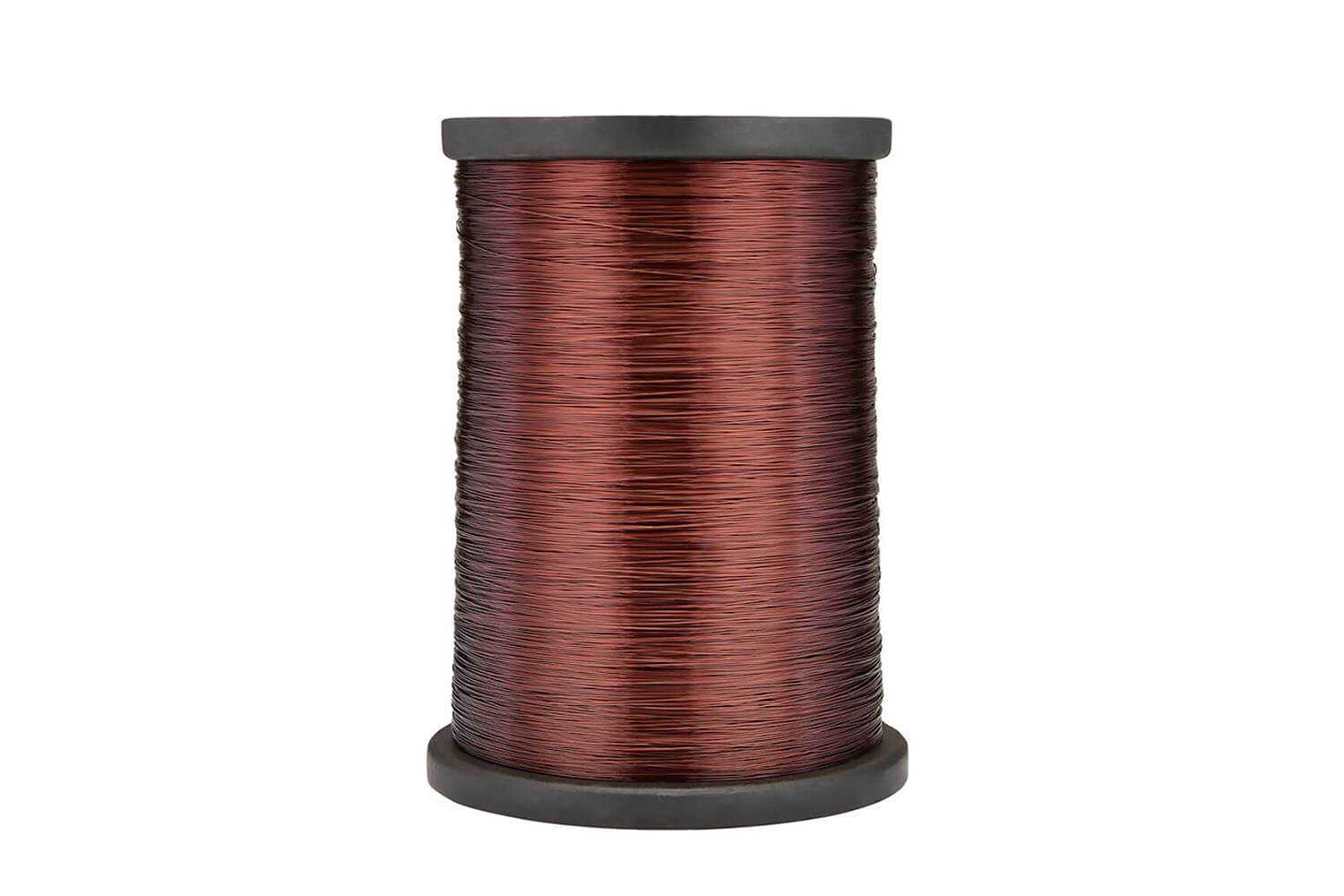

EmTherm CCA (B Tipi) Bakır Kaplı Aluminyum Emaye Bobin Teli

0 Yorumlar

FİYAT :

474,07 TL + KDV

KDV DAHİL FİYATI : 568,88 TL

Kısa Ürün Açıklaması CCA= Emaye+Bakır+Aluminyum Bobin Teli

{"vat":20,"m_o_p":-1,"variant_ids":{"0_914":"2261","0_333":"1811","0_332":"2307","0_327":"1813","0_325":"1814","0_323":"1815","0_322":"1816","0_321":"1817","0_319":"1818","0_318":"1819","0_317":"1820","0_314":"1821","0_313":"1822","0_312":"1823","0_311":"1824","0_309":"1826","0_378":"1828","0_374":"1830","0_372":"1832","0_370":"1834","0_368":"1836","0_366":"2208","0_364":"2309"},"variant_prices":{"0_914":545.1814200000000028012436814606189727783203125,"0_333":533.329649990000007164780981838703155517578125,"0_332":533.329649990000007164780981838703155517578125,"0_327":513.576699989999951867503114044666290283203125,"0_325":513.576699989999951867503114044666290283203125,"0_323":493.8237499900000102570629678666591644287109375,"0_322":493.8237499900000102570629678666591644287109375,"0_321":493.8237499900000102570629678666591644287109375,"0_319":474.07080000000001973603502847254276275634765625,"0_318":474.07080000000001973603502847254276275634765625,"0_317":474.07080000000001973603502847254276275634765625,"0_314":474.07080000000001973603502847254276275634765625,"0_313":474.07080000000001973603502847254276275634765625,"0_312":474.07080000000001973603502847254276275634765625,"0_311":474.07080000000001973603502847254276275634765625,"0_309":474.07080000000001973603502847254276275634765625,"0_378":474.07080000000001973603502847254276275634765625,"0_374":474.07080000000001973603502847254276275634765625,"0_372":474.07080000000001973603502847254276275634765625,"0_370":474.07080000000001973603502847254276275634765625,"0_368":474.07080000000001973603502847254276275634765625,"0_366":474.07080000000001973603502847254276275634765625,"0_364":474.07080000000001973603502847254276275634765625},"variant_price_raws":{"0_914":13.800000000000000710542735760100185871124267578125,"0_333":13.5,"0_332":13.5,"0_327":13,"0_325":13,"0_323":12.5,"0_322":12.5,"0_321":12.5,"0_319":12,"0_318":12,"0_317":12,"0_314":12,"0_313":12,"0_312":12,"0_311":12,"0_309":12,"0_378":12,"0_374":12,"0_372":12,"0_370":12,"0_368":12,"0_366":12,"0_364":12},"buying_prices":{"0_914":0,"0_333":0,"0_332":0,"0_327":0,"0_325":0,"0_323":0,"0_322":0,"0_321":0,"0_319":0,"0_318":0,"0_317":0,"0_314":0,"0_313":0,"0_312":0,"0_311":0,"0_309":0,"0_378":0,"0_374":0,"0_372":0,"0_370":0,"0_368":0,"0_366":0,"0_364":0},"not_discounted_prices":{"0_914":545.1814200000000028012436814606189727783203125,"0_333":533.329649990000007164780981838703155517578125,"0_332":533.329649990000007164780981838703155517578125,"0_327":513.576699989999951867503114044666290283203125,"0_325":513.576699989999951867503114044666290283203125,"0_323":493.8237499900000102570629678666591644287109375,"0_322":493.8237499900000102570629678666591644287109375,"0_321":493.8237499900000102570629678666591644287109375,"0_319":474.07080000000001973603502847254276275634765625,"0_318":474.07080000000001973603502847254276275634765625,"0_317":474.07080000000001973603502847254276275634765625,"0_314":474.07080000000001973603502847254276275634765625,"0_313":474.07080000000001973603502847254276275634765625,"0_312":474.07080000000001973603502847254276275634765625,"0_311":474.07080000000001973603502847254276275634765625,"0_309":474.07080000000001973603502847254276275634765625,"0_378":474.07080000000001973603502847254276275634765625,"0_374":474.07080000000001973603502847254276275634765625,"0_372":474.07080000000001973603502847254276275634765625,"0_370":474.07080000000001973603502847254276275634765625,"0_368":474.07080000000001973603502847254276275634765625,"0_366":474.07080000000001973603502847254276275634765625,"0_364":474.07080000000001973603502847254276275634765625},"variant_supplier_codes":{"0_914":"","0_333":"139-496-8","0_332":"","0_327":"139-500-12","0_325":"139-502-14","0_323":"139-504-16","0_322":"139-506-18","0_321":"139-508-20","0_319":"139-510-22","0_318":"139-512-24","0_317":"139-514-26","0_314":"139-516-28","0_313":"139-518-30","0_312":"139-520-32","0_311":"139-522-34","0_309":"139-526-38","0_378":"139-530-42","0_374":"139-534-46","0_372":"139-538-50","0_370":"139-542-54","0_368":"139-546-58","0_366":"","0_364":""},"active_ids":{"one_0":["914","332","327","325","323","322","321","319","318","317","314","313","312","311","309","378","374","372","370","368"],"two_914":["0"],"two_333":[],"two_332":["0"],"two_327":["0"],"two_325":["0"],"two_323":["0"],"two_322":["0"],"two_321":["0"],"two_319":["0"],"two_318":["0"],"two_317":["0"],"two_314":["0"],"two_313":["0"],"two_312":["0"],"two_311":["0"],"two_309":["0"],"two_378":["0"],"two_374":["0"],"two_372":["0"],"two_370":["0"],"two_368":["0"],"two_366":[],"two_364":[]},"variant_informations":[],"variant_stocks":{"0_914":"94","0_333":"0","0_332":"50","0_327":"50","0_325":"50","0_323":"50","0_322":"50","0_321":"25","0_319":"50","0_318":"250","0_317":"42.5","0_314":"50","0_313":"50","0_312":"50","0_311":"50","0_309":"192.5","0_378":"100","0_374":"50","0_372":"50","0_370":"50","0_368":"50","0_366":"0","0_364":"0"}}

İletken Çapı

kg

Tavsiye Et Fiyat Alarmı

Ürün Özellikleri
Ödeme Seçenekleri
Teslimat & İade Koşulları
Yorumlar (0)
Hızlı Mesaj
Tavsiye Et

CCA (Copper Clad Aluminium) yani Bakır Kaplı Aluminyum tel üzeri emaye izolasyonlu bobin telidir.

Ana iletken aluminyum olduğu için hafif ancak iletken yüzey bakır olduğu için iletkenliği bakır tele eşittir.

Dolayısıyla aluminyumun hafifliği ve bakırın iyi iletkenliği bir araya getirilerek avantajlı bir alternatif ürün ortaya çıkarılmıştır.

Bu sayede hem sarılan bobin daha hafif hem de daha uygun maliyetli olarak üretilebilir.

Uygulama Alanları:

Küçük motor ve trafolar
Selenoid bobinler
Röleler

TERMAL SINIF (°C)	Class F, 155 °C
YALITIM \| ALT KATMAN	Poliüretan
YALITIM \| ÜST KATMAN	Yok
YALITIM \| BAĞ KATMAN	Yok
ÜRETİM ARALIĞI (MM)	0.18 - 1.70 mm
STANDARTLAR I.E.C	IEC 60317
UL DOSYA NO
ISI SINIFI (°C)	155 °C
ISIL ŞOK (°C)	≥ 180 °C
ISI İLE DELİNME SICAKLIĞI (°C)	≥ 220 °C
LEHİMLENME-SİCAKLİGİ (°C)	Lehim Alır
ISI İLE YAPIŞMA SICAKLIĞI (°C)	Uygulanmaz
GERİ YUMUŞAMA SICAKLIĞI (°C)	Uygulanmaz
NORMAL SOLVENTLERE DİRENÇ	3H
DALDIRMA VERNİĞİ DİRENCİ	İyi
SOĞUTUCU GAZ DİRENCİ	İyi
TRAFO YAĞLARINA KARŞI DİRENÇ	İyi
KULLANIM ALANI	Hafif Motorlar, Elektronik, Küçük Trafolar
BELİRGİN ÖZELLİKLERİ	Bakıra kıyasla daha iyi bir ağırlık oranı, fiyat avantajı, yumuşak ve esnek yapısıyla avantajlı ve bakır kaplaması sayesinde iletkenliği bakır tel ile eşittir.
UYGULAMALAR	Hafif Motorlar, Mekanik Balastlar, Elektronik ve Alçak Gerilim Trafoları

Ağırlık(Kg)

:

1
